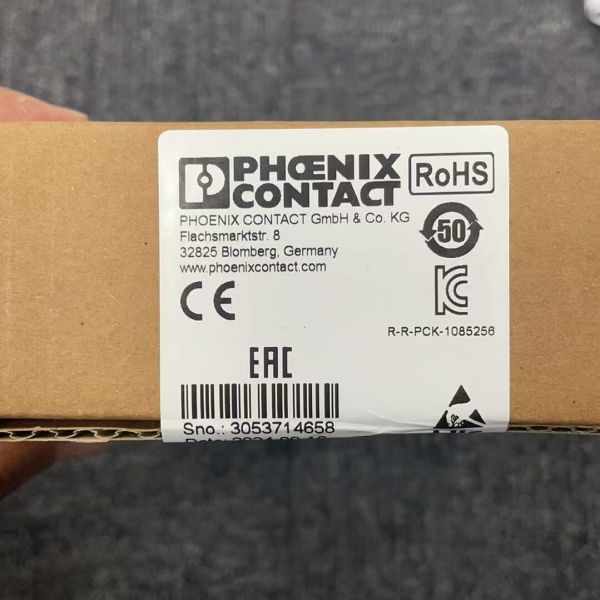

Phoenix Contact FL SWITCH 1008N | 8-Port Fast Ethernet DIN Rail Switch
Phoenix Contact FL SWITCH 1008N unmanaged industrial Ethernet switch. 8x 10/100 Mbps RJ45 ports, 24V DC/AC power, 22.5mm slim DIN rail mount.
Product Overview
The Phoenix Contact FL SWITCH 1008N (Order No. 1085256) is an unmanaged industrial Ethernet switch from the FL SWITCH 1000 series. It features 8 Fast Ethernet (10/100 Mbps) RJ45 ports in an ultra-slim 22.5 mm wide housing for high-density DIN rail mounting. Designed for harsh industrial environments, it supports a wide-range 24V DC/AC power supply and includes QoS (Quality of Service) prioritization for automation protocols like PROFINET.
Technical Specifications (Network & Ports)
| Parameter | Specification |
| Product Family | FL SWITCH 1000 (Unmanaged) |
| Order Number | 1085256 |
| Number of Ports | 8 x RJ45 |
| Port Speed | 10 / 100 Mbps (Auto-negotiation) |
| Switching Bandwidth | 1.6 Gbps |
| MAC Address Table | 2,000 entries |
| Switching Mode | Store-and-Forward |
| QoS / Prioritization | IEEE 802.1p (4 priority queues) |
| PROFINET Conformance | Class A |
| Cable Length (Max) | 100 m (per segment) |
Technical Specifications (Electrical & Mechanical)
| Parameter | Specification |
| Power Supply | 24 V DC / 24 V AC (50/60 Hz) |
| Supply Voltage Range | 9 ... 32 V DC / 18 ... 30 V AC |
| Power Consumption | ~1.55 W (Typ. 28 mA @ 24V DC) |
| Connection | Push-in Spring (0.2 - 2.5 mm²) |
| Housing Dimensions (WxHxD) | 22.5 mm x 140.4 mm x 92.4 mm |
| Mounting | DIN Rail (35 mm) |
| IP Rating | IP30 (DIN Rail Mounted) |
| Operating Temperature | -10 °C ... +60 °C |
| Housing Material | Polycarbonate (Fiber Reinforced) |
| Standards | IEEE 802.3, 802.3u, 802.3az (EEE) |
Key Features
-
Industrial Ruggedness: Designed for reliable operation in industrial environments with wide temperature range and vibration resistance.
-
Plug & Play: Unmanaged operation with auto-negotiation and auto-crossing (MDI/MDIX) for easy installation without configuration.
-
Space Saving: 22.5 mm width allows installation in tight control panel spaces.
-
PROFINET Ready: Supports PROFINET Conformance Class A with integrated PTCP filter for real-time communication.
Applications
-
Machine-level network infrastructure for PLCs, HMIs, and drives
-
PROFINET and Ethernet/IP device-level networks
-
Factory automation and process control systems
