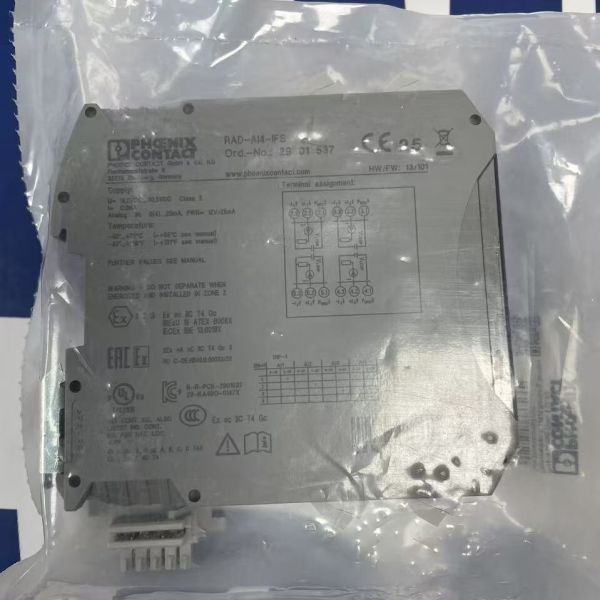

Phoenix Contact RAD-AI4-IFS | 4-Channel 0/4-20mA Analog Input Module
Phoenix Contact RAD-AI4-IFS I/O extension module. 4 analog current inputs (0/4-20mA), 16-bit resolution, 24V DC supply, IP20, for Radioline wireless systems.
Product Overview
The Phoenix Contact RAD-AI4-IFS is an I/O extension module designed for use with the Radioline wireless system and other IFS masters. It provides four isolated analog current inputs configurable for 0-20 mA or 4-20 mA signals via DIP switches. With 16-bit resolution and a wide operating temperature range, it is built for robust industrial signal acquisition in process control and remote monitoring applications.
Technical Specifications (Electrical & I/O)
| Parameter | Specification |
| Model | RAD-AI4-IFS |
| Article Number | 2901537 |
| Input Channels | 4 (Analog Current) |
| Input Signal | 0 ... 20 mA or 4 ... 20 mA (DIP selectable) |
| Max. Input Current | 22 mA |
| Input Resistance | < 70 Ω |
| Resolution | 16 Bit |
| Accuracy | ≤ 0.02 % (at 25 °C) |
| Supply Voltage | 19.2 ... 30.5 V DC (via TBUS) |
| Power Consumption | ≤ 120 mA (at 24 V DC) |
Technical Specifications (Mechanical & Environmental)
| Parameter | Specification |
| Mounting | DIN Rail (NS35) |
| Dimensions (WxHxD) | 17.5 x 113 x 114.5 mm |
| Protection Rating | IP20 |
| Operating Temperature | -40 ... +70 °C (>55°C derating) |
| Storage Temperature | -40 ... +85 °C |
| Isolation | Channel-to-channel, 1.5 kV AC |
| Certifications | CE, ATEX, IECEx (Zone 2) |
Key Features
-
High-Density Analog Input: Four channels in a compact 17.5mm width for space-efficient cabinet design.
-
Tool-Free Addressing: Integrated thumbwheel for easy node ID setting without software.
-
Industrial Ruggedness: Operates in extreme temperatures (-40°C to +70°C) and offers surge protection.
-
Hot-Swap Capable: Supports module replacement during operation via TBUS DIN rail connector.
Applications
-
Remote Process Monitoring: Connecting 4-20 mA transmitters (pressure, temperature, level) in wireless I/O networks.
-
Machine Automation: High-precision analog signal acquisition for PLC or wireless control systems.
-
Harsh Environments: Suitable for Zone 2 hazardous areas and wide temperature applications.
